L3-500A2

21st Century Measurement Technology Turnkey Systems

L3-500A2

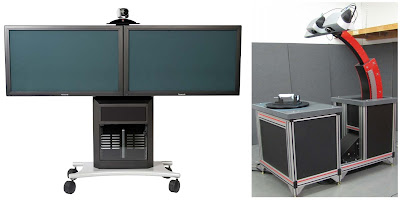

2 Axis Robotic WLS System

• Scanner Adaptability: Universal
• Orientation: Left-hand or right-hand configurations
• Arm Radius: 375mm
• X/Y Axes Travel: F
• Vertical Z Axis (Elevator) Travel: 300mm
• Rotational Axis: 360° continuous
• Table Diameter: 500mm
• System Weight (without camera): 750 lbs
• Table Payload Capacity: 500 lbs standard, 1000 lbs optional
• Camera Weights: Up to 50 lbs
• Electrical: 110-120V/20 Amp max./1φ/50-60Hz AC

• Robust, simple, cost effective robotic design
• Rapid setup, designed for shop floor portability
• Exclusive inward-looking, semi-spherical scanning envelope: true line of-sight
• “Teach-Pendent” programmability streamlines repetitive parts inspection
• Automated scan patch registration—no need for closed-loop feedback
• Rapid 3D scanning of complex surface geometries
• Improves the reproducibility of any scanning instrument
• Complete Turnkey Systems Available
• 5 Axis Robot
• White Light Scanner or your choice
• Custom configured hardware and software
